Metering pumps
Precision variable-speed peristaltic pump: 0.006–1600 mL/min flow range, time-dispense mode, anti-drip, and RS485 MODBUS connectivity.
| Flow range | 0.006 – 1,600 mL/min (pump-head dependent) |
|---|---|
| Speed range | 0.1 – 350 rpm |
| Speed resolution | 0.1 rpm (0.1–100 rpm); 1 rpm (100–350 rpm) |
| Speed accuracy | ±0.5% |
| Maximum channels | 4 (pump-head dependent) |
| Power supply | AC 110 V / 220 V ±10%, 50/60 Hz |
| Power consumption | < 50 W |
| Logic control signal | 5 V, 12 V standard; 24 V optional |
| Analog control signal | 0–5 V standard; 0–10 V or 4–20 mA optional |
| Communication | RS485 MODBUS |
| Operating range | 0–40 °C, < 80% relative humidity |
| Ingress protection | IP31 |
| Dimensions | 226 × 150 × 238 mm (8.90 × 5.91 × 9.37 in) |
| Weight | 4.9 kg (10.8 lb) |
The drive unit is identical across every option below — the head determines your flow range, tubing size and channel count. Unsure which to pick? Send us your target flow rate and tubing ID and we'll confirm the right one.
| Configuration | Price |
|---|---|
| Without pump head | $675.00 USD |

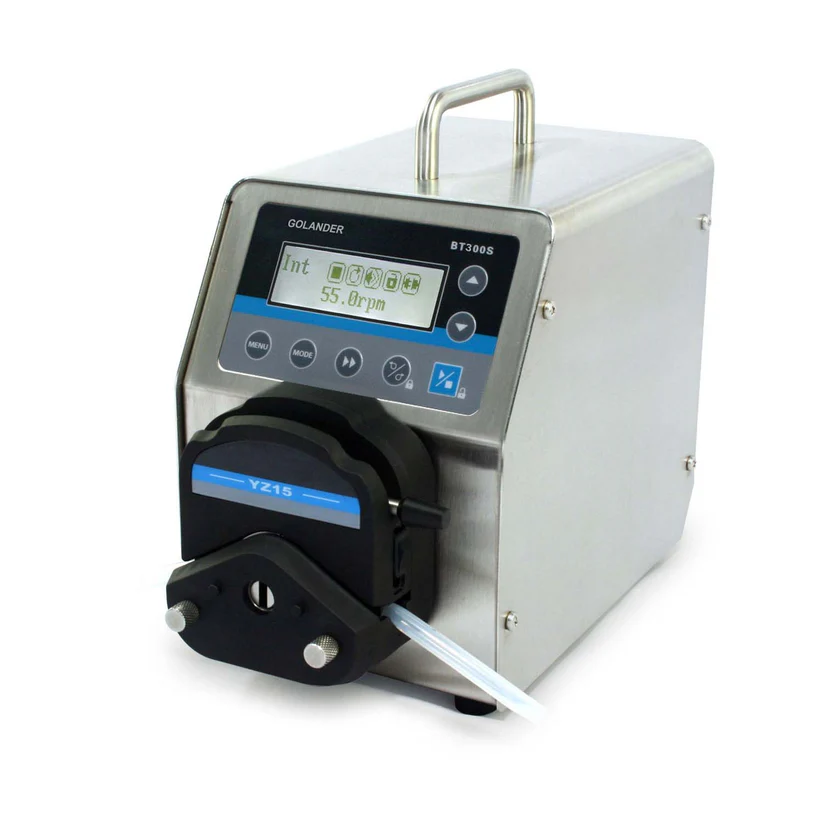

| YZ15 (1 channel) | $920.00 USD |

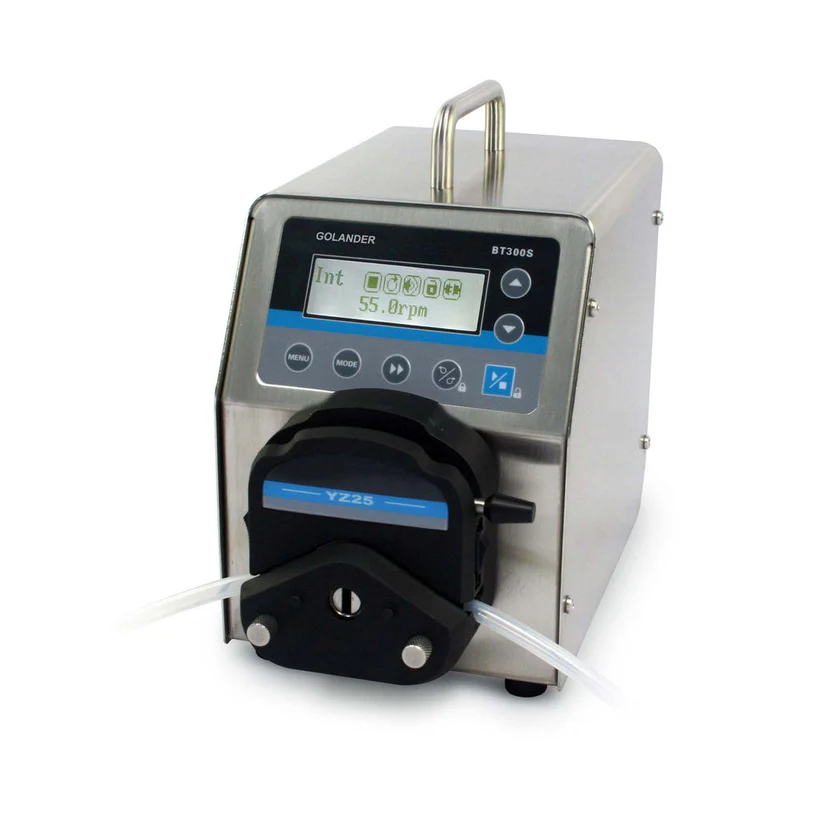

| YZ25 (1 channel) | $920.00 USD |

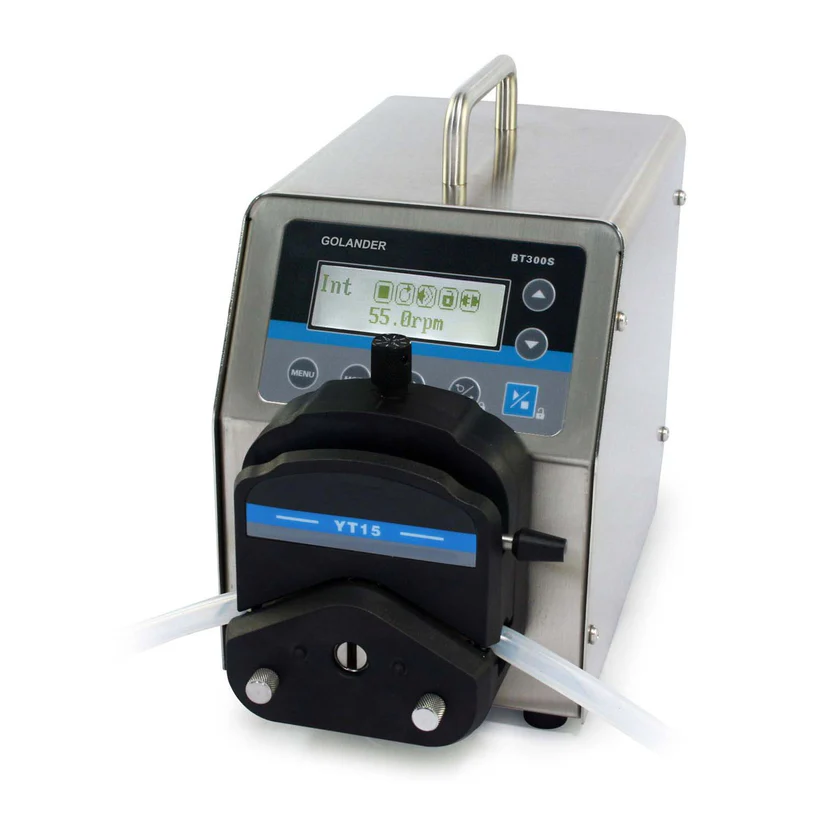

| YT15 (1 channel) | $950.00 USD |

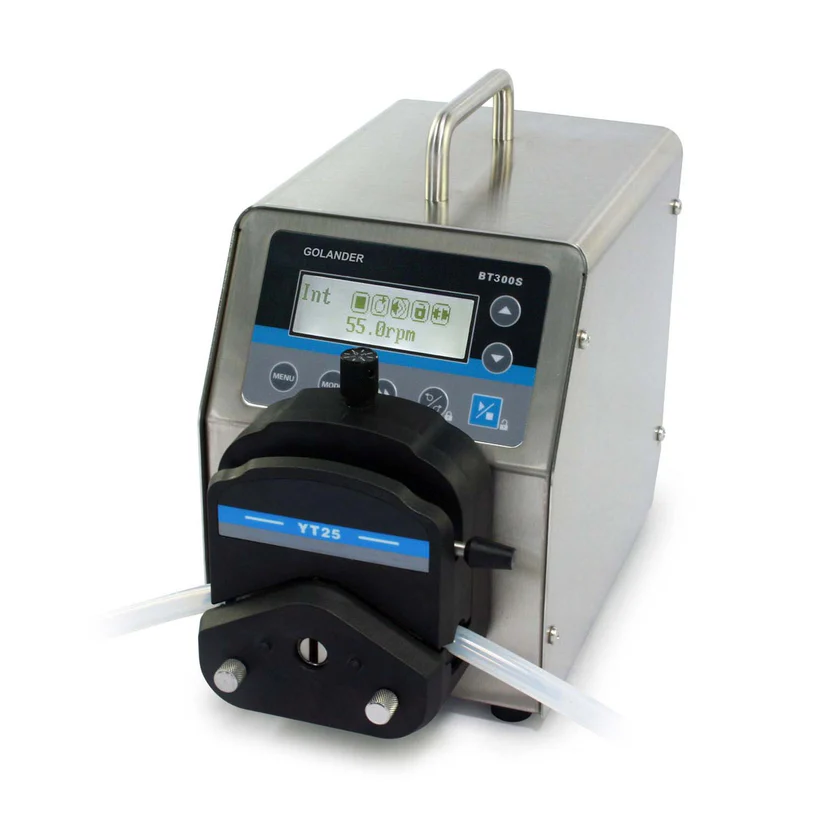

| YT25 (1 channel) | $950.00 USD |

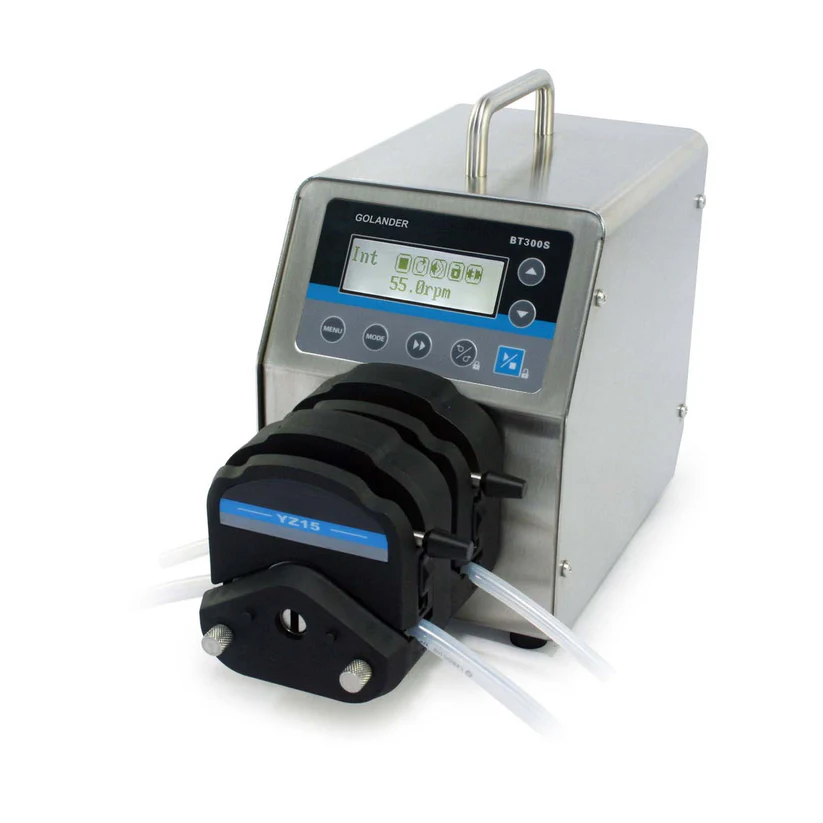

| 2xYZ15 (2 channels) | $1,165.00 USD |

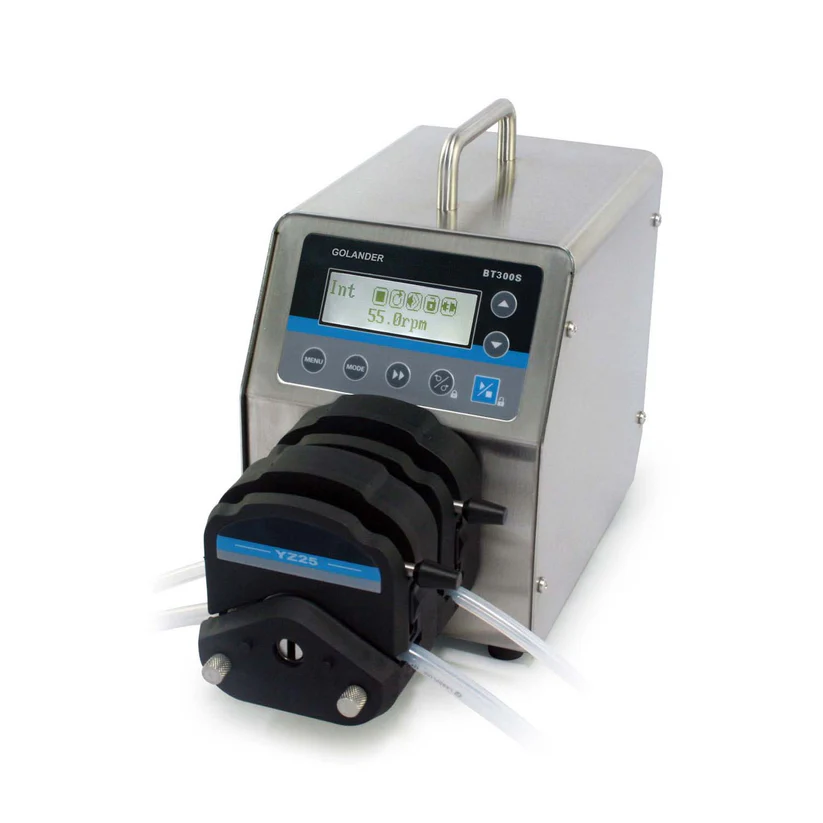

| 2xYZ25 (2 channels) | $1,165.00 USD |
| 2xYT15 (2 channels) | $1,225.00 USD |

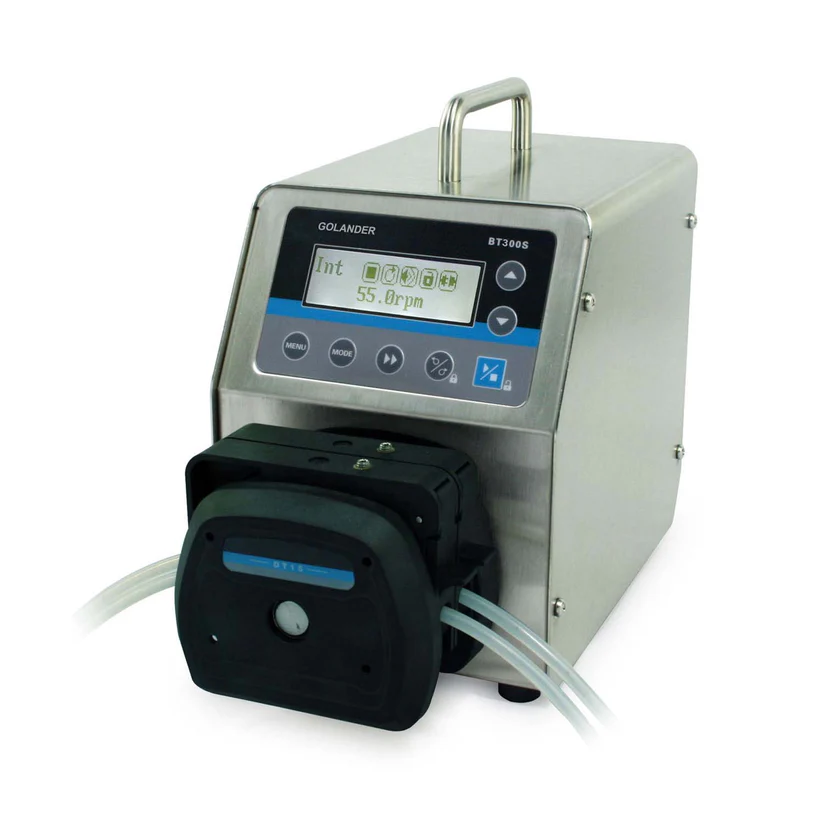

| DT15-24 (2 channels) | $1,050.00 USD |

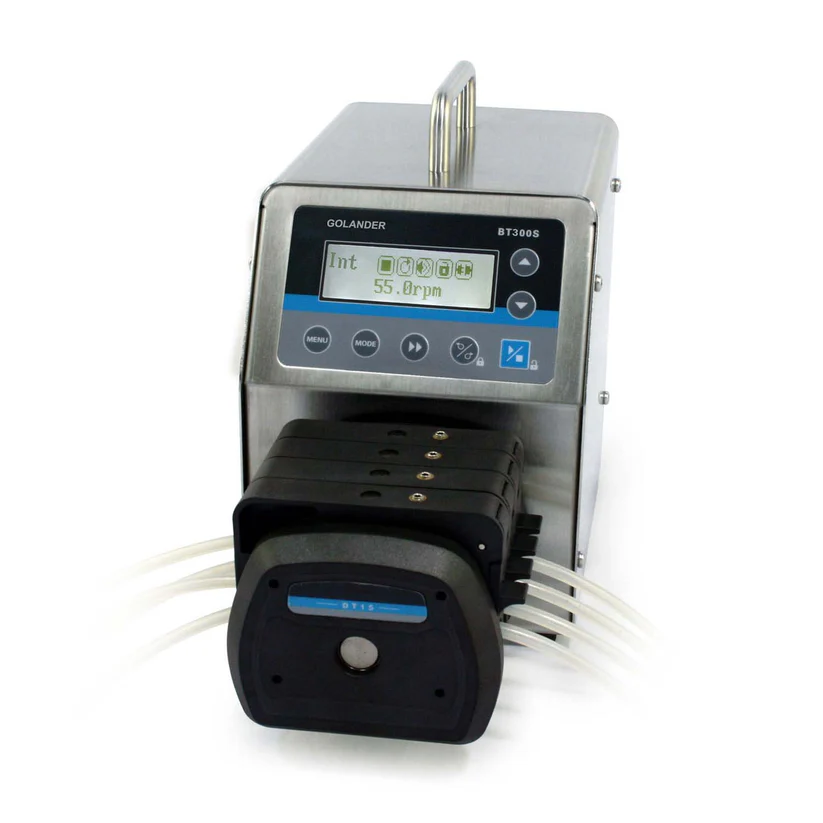

| DT15-44 (4 channels) | $1,200.00 USD |
Tubing is not included. Tubing is a consumable and is selected to match your fluid and required flow rate. Our micro-flow silicone tubing covers DG and DT heads; tell us your application and we'll confirm the right bore.
